Industrial Centrifugal And Axial Fans

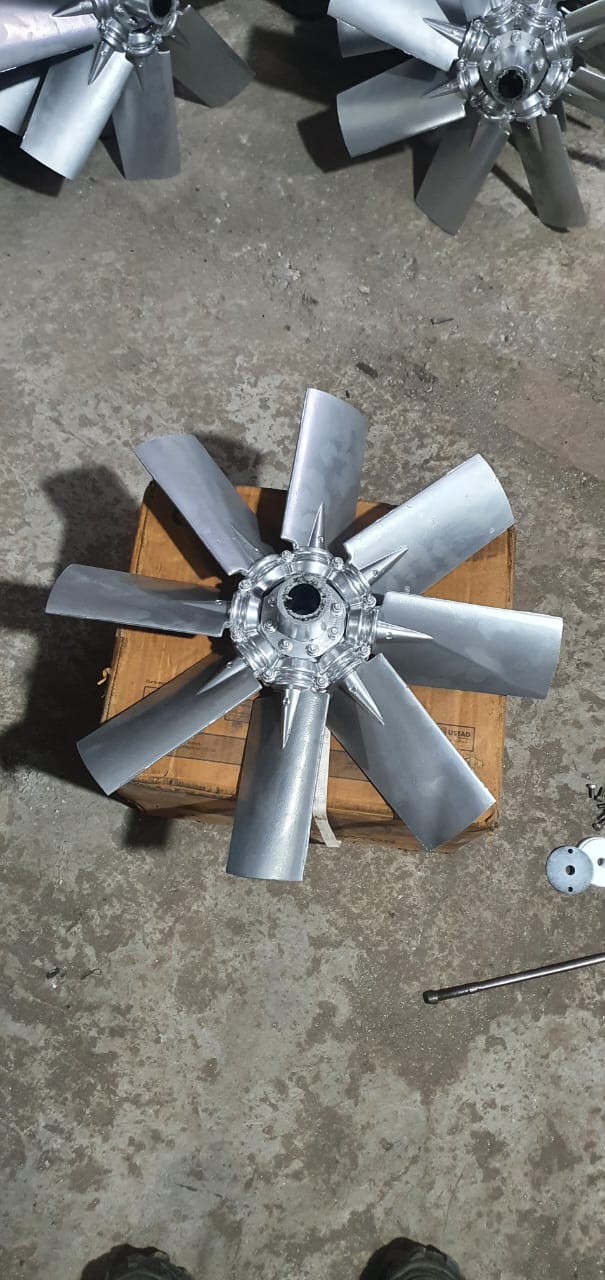

WhatsApp Image 2025-10-11 at 15.51.21 (1)

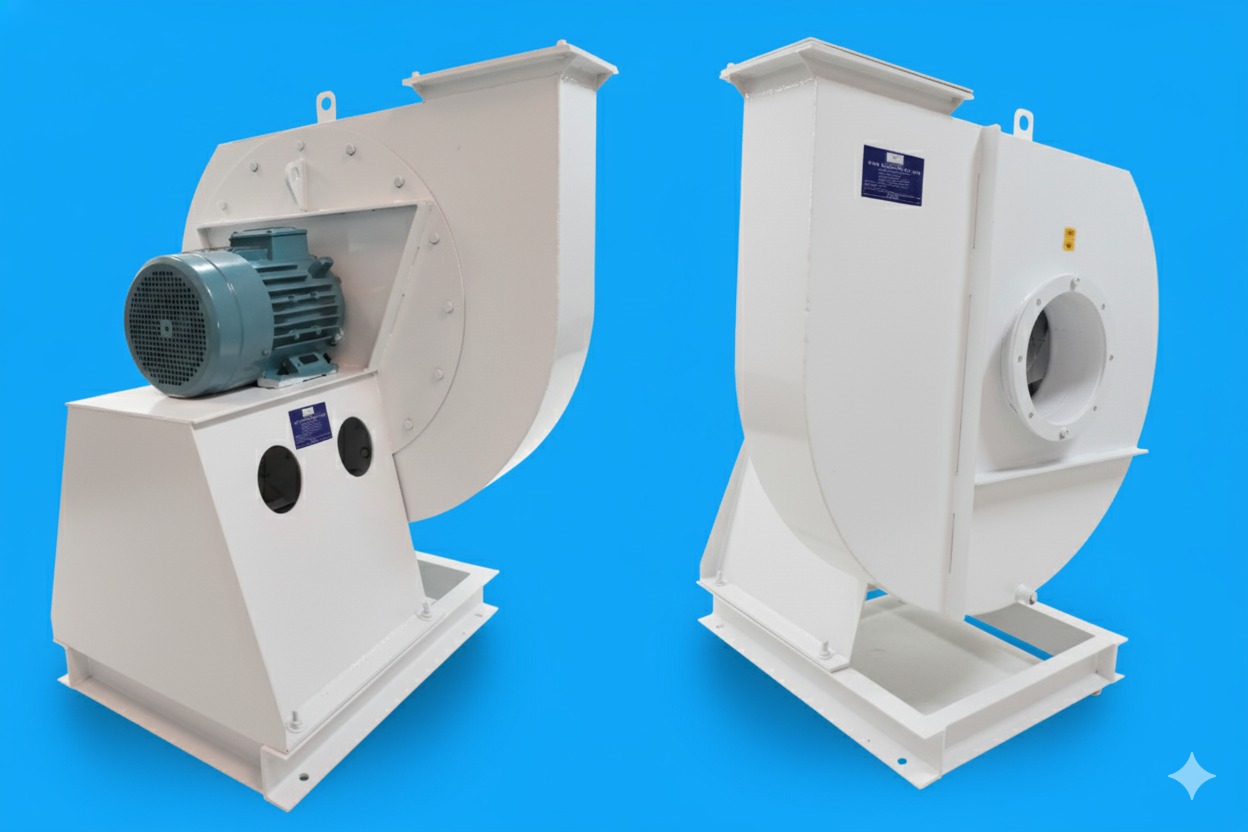

WhatsApp Image 2025-11-03 at 3.42.49 PM (1)

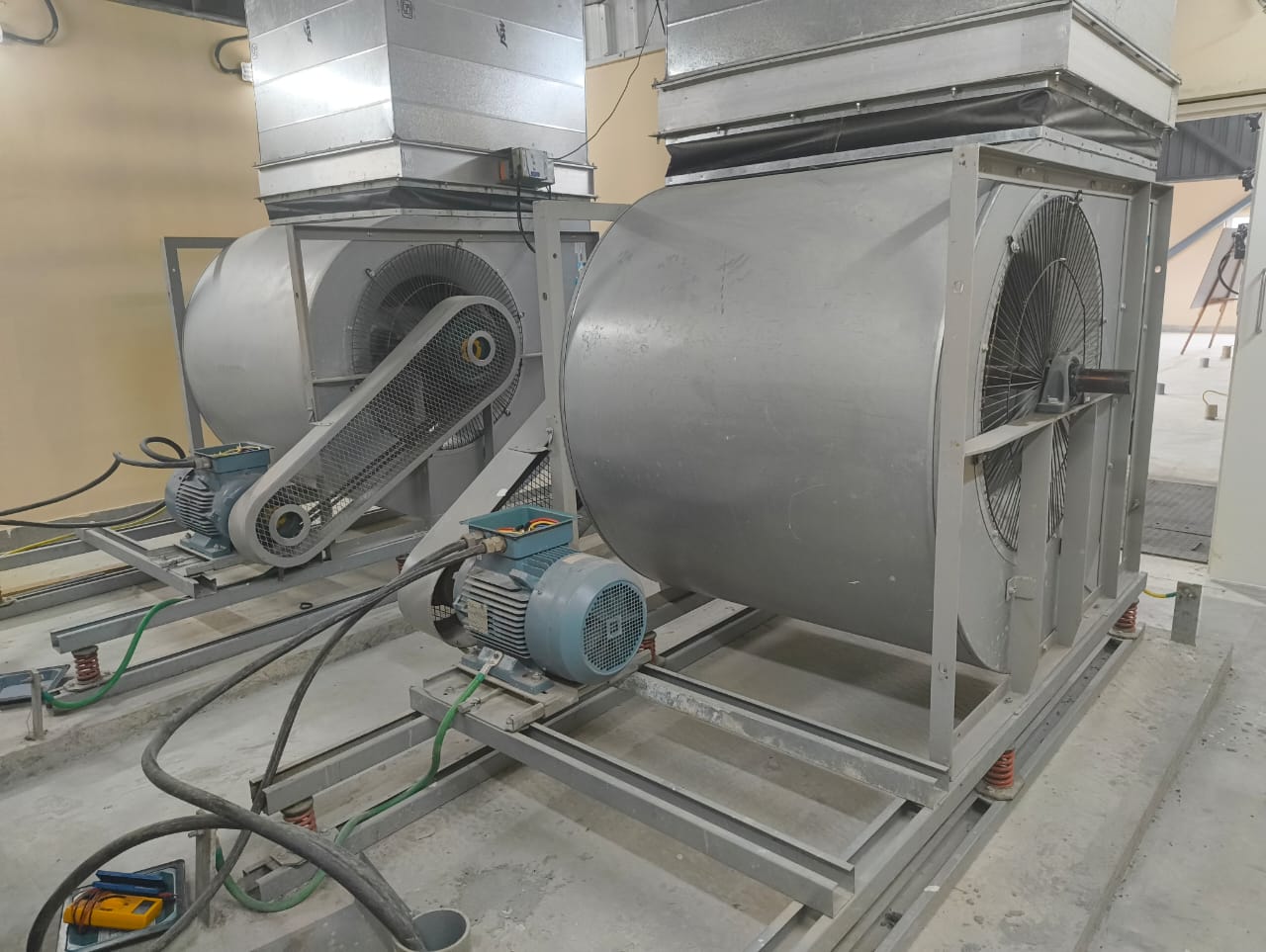

Belt Driven Fan

Impeller fitted on the end of the shaft, which rests on two separate bearings.

The belt and pulley drive makes it very versatile.

The fan can be adapted for high temperature uses with the addition of a cooling disc.

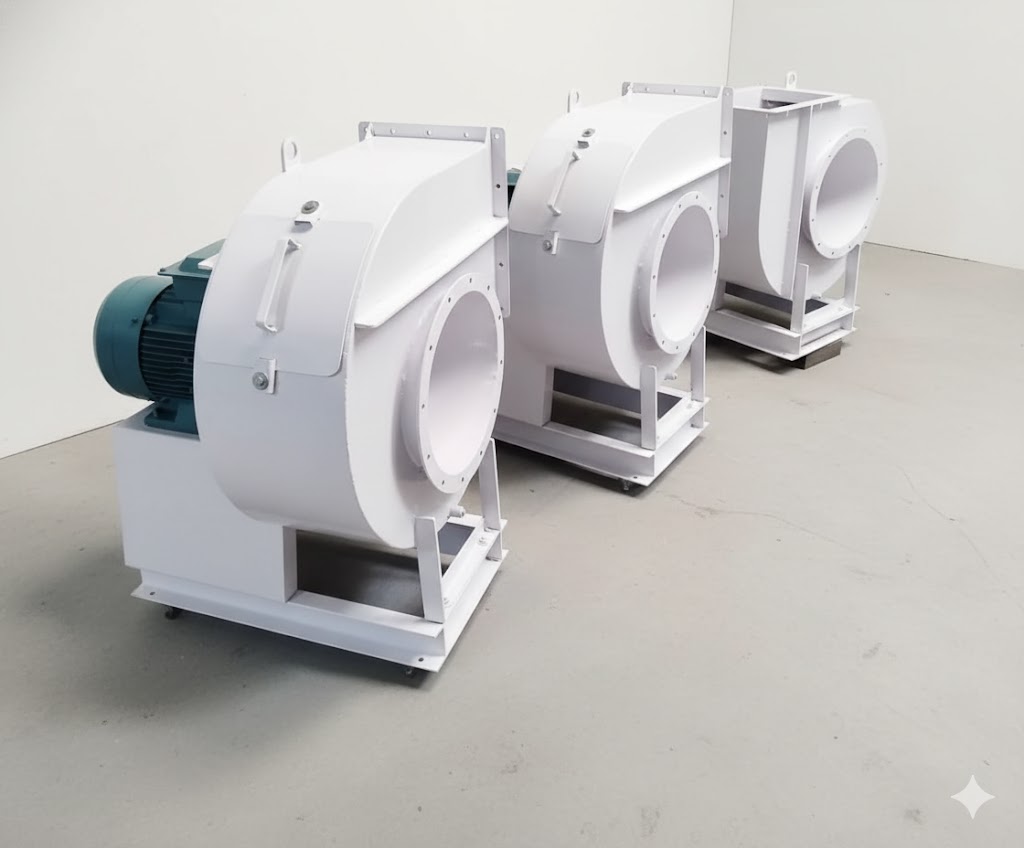

Impeller Mount On Motor Shaft

The main feature of this arrangement is the direct coupling of the impeller on the end of the shaft.

It has the following advantages:

Elimination of the bearings, thus reducing maintenance and saving power as compared to belt-driven fan.
Reduced floor space.

Coupling Driven Fan

The impeller is fitted on the end of the shaft which is mounted on two independent bearings. The impeller is connected to the motor by a flexible coupling.

Applications

Temperatures beyond 200⁰
Corrosive surroundings.
Dust filled air.
High Powers.
It can be easily fitted with

Cooling disc for the shaft.
Extra tight sealing for the shaft, etc.

Standard Arrangements

High Pressure Fans

Description

High Pressure Fan has impeller with flat / backward curved blades, depending upon application (i.e. dusty air/clean air).
Designed for handling air for following parameters.

Performance

Pressure	Upto 1,500 mm wg
Capacity	Upto 15,000 m³/hr
Maximum efficiency	78%

To enable us to select the right fan for your requirements, please send the following information to us.

Application
Type of gas
Gas density
Gas flow rate
Static pressure
Total pressure
Temperature
Dust content and type of dust
Discharge direction
Any special requirement

Fans For Dusty Air	Fans For Clean Air
Covers capacities	Covers capacities
Upto 15,000 m3/hr	Upto 24,000 m3/hr
Pressure upto 1,500 mm wg.	Pressure upto 1,500 mm wg.

Salient Features

Flat working curves to reduce risk of “hunting”.
Streamlined inlet and special blade design to keep down noise level to a minimum
